SPECS BARYTA

Builder: Elemental Rides - Ricardo Santos

Name: #56 - Baryta
Make Model: Norton Dominator 88
Year: 1961

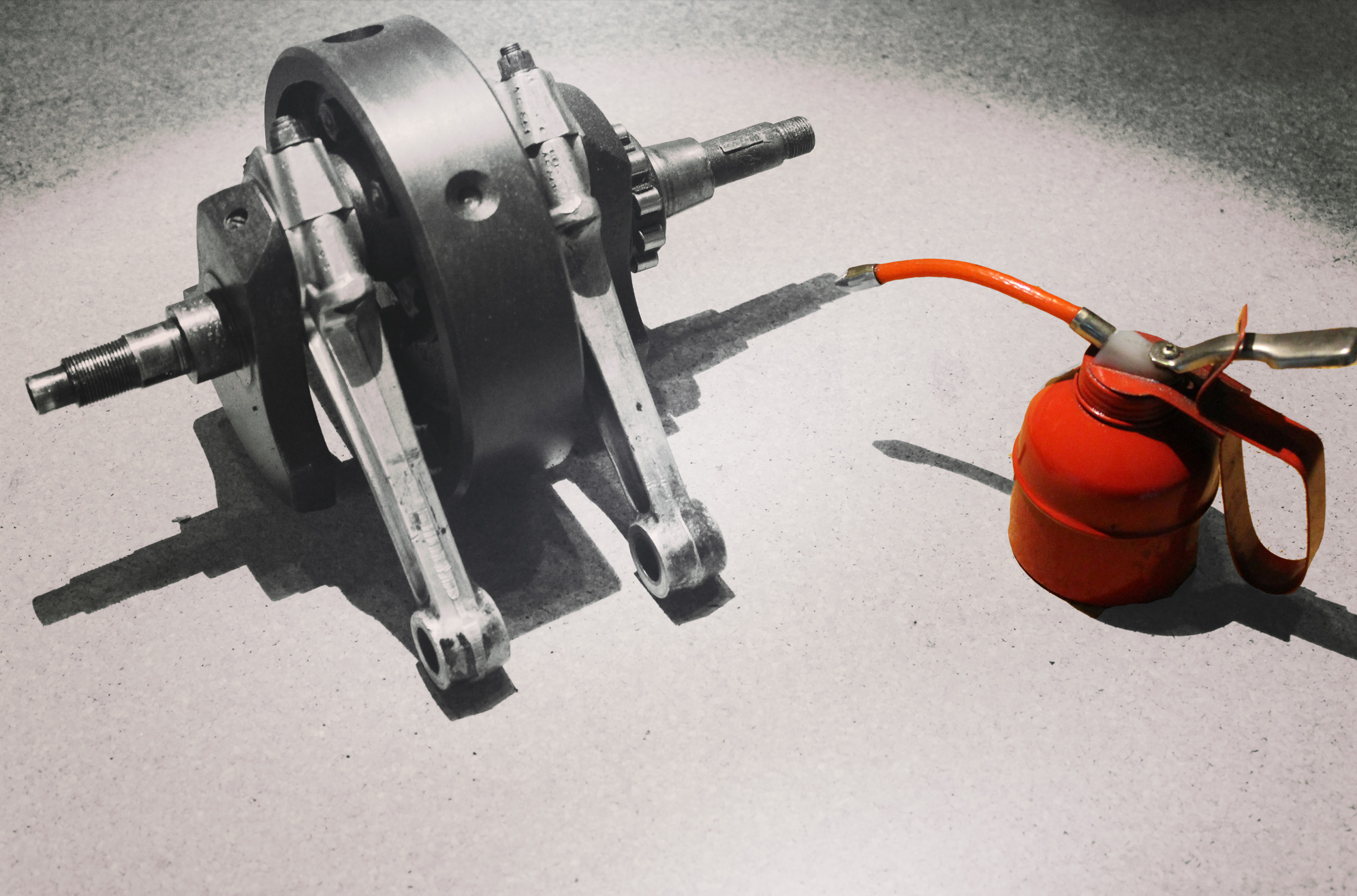

Engine: Four stroke, twin cylinder fully rebuilt:; high compression pistons; ported; 2S cam
Capacity: 497cc
Bore x Stroke: 66 x 73mm
Cooling System: Air cooled; bespoke oil radiator
Compression Ratio: 9.5:1
Lubrication: Dry sump; 2.8L oil tank integrated in the rear hump
Exhaust: Custom made; Seager stainless nuts; Thermotec pipe wrap and megaton ends
Induction: Dual Amal Concentric MkI 626 Carburettors; 50mm alloy stacks
Starting: Foldable kickstarter
Electrical System: 12V custom built; 15A main fuse; full LED lighting; Motogadget RFID M-lock
Ignition: Wassel electronic ignition with alloy pickup body
Alternator: Sparx 3-phase 200W
Regulator: Boyer Bransden 3-phase power box
Battery: Antigravity 4cell LiFePO4
Clutch: Barnett dry multiplate disc clutch
Transmission: AMC 4 speed fully rebuilt with superblend main and layshaft bearing
Final Drive: Front sprocket 21; Rear sprocket 47
Chain: Renold 5/8"-3/8"
Frame: Norton Full duplex cradle 'Featherbed' slimline type; Cleaned and de-gusseted
Front Suspension: Norton Roadholder,modified tarozzi brace;John Tickle top yoke steering damper
Rear Suspension: Hagon road shocks custom setup
Front Brake: Modified 9" 4LS Robinson replica drum brake; custom cantilever cable splitter
Rear Brakes: One-off 8" drum; Norton Atlas front 2LS custom brake plate
Front Wheel: Borrani 18" WM2 36H 8G stainless spokes
Rear Wheel: Borrani 18" WM3 40H 8G stainless spokes
Front Tyre: Heidenau K34 3.50 -18 TT 62 S
Rear Tyre: Avon Safety Mileage MK II AM7 4.00 -18 TT 64 S
Bodywork: Handmade polished alloy 1 piece tank/seat/oil reservoir;
Handlebar: Custom Vintage cromoly 35mm clip-ons
Grips: Leather lock-on custom made
Foot controls: Folding alloy rearsets
Levers: Custom Tomaselli ajustable on fly Replicas with integrated Lucas switches
Headlight: Lucas original 7" with Philips LED H4 Lamp; modified John Tickle brackets
Rear Light: Simca glass lens with custom LED
Instrumentation: Westach dual gauge; Joyett Oil pressure gauge
Seat: Custom
Dry Weight: 155kg
Fuel Capacity: 23l
